Exterior

Cabin Suspension

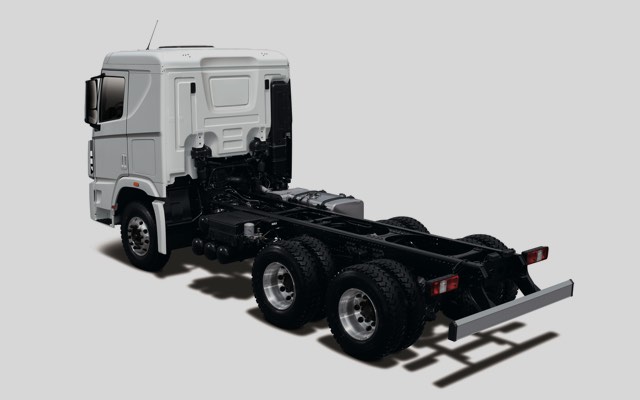

Durability (structure)

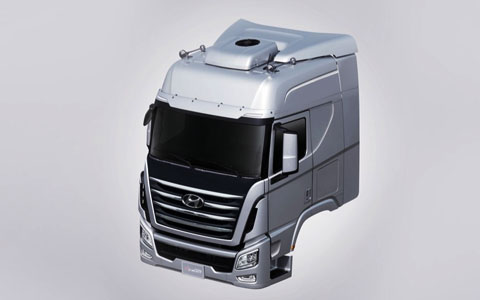

Outside mirrors
Innovative design

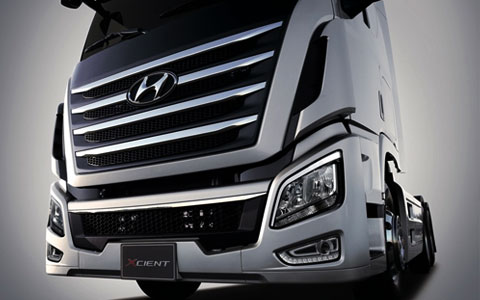

Supportive Lamps

Interior

Steering wheel

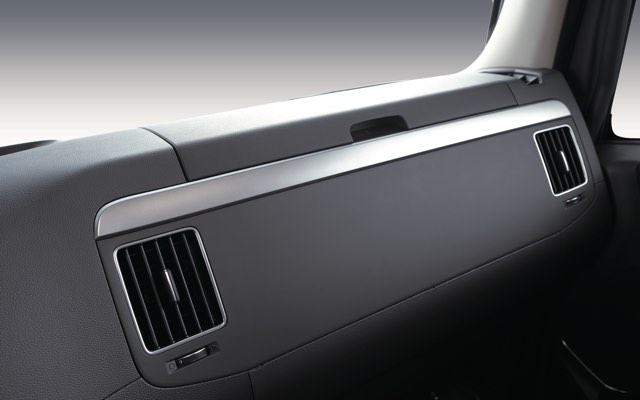

Ion generator

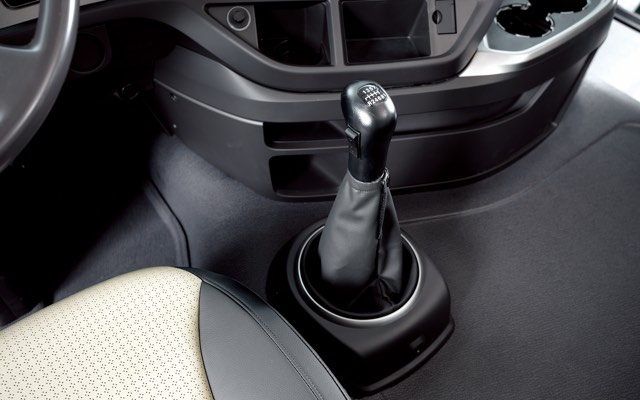

T.G.S knob

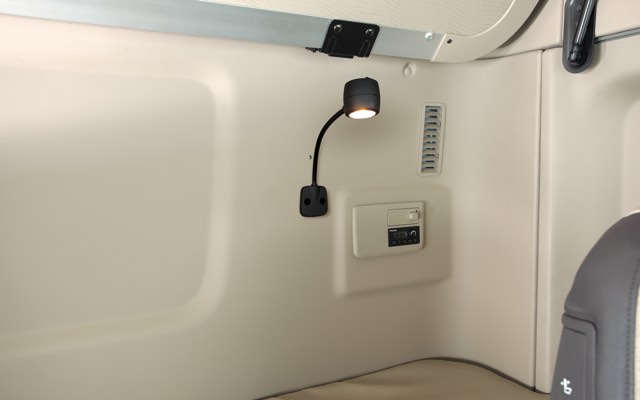

Bedroom lamp

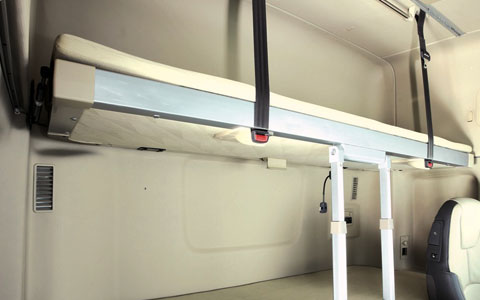

World’s Largest Bed

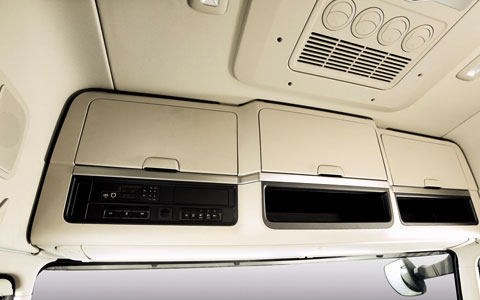

Largest Storage Space

Specifications

Basic Specification

Driving Handle Right Hand Drive
Series Name Xcient
GVW 70,000 kg
Wheel Base Type Short
Cabin Type Sleeper Wide Cabin

Engine Model

Model D6HB38
Type 4-stroke-cycle, in line 6 cylinders water cooled direct injection, diesel engine with turbo charger inter cooler
Bore x Stroke 122 x 142 mm
Max. Output 380PS @ 2,000 rpm
Max. Torque 160 kg.m @ 1,200rpm
Displacement 9,960cc

Transmission

Model Name H160S 2x5
Ratios 1st(high/low): 9.153/7.145
2nd(high/low): 4.783/3.733
3rd(high/low): 2.765/2.158
4th(high/low): 1.666/1.301
5th(high/low): 1.000/0.780
Reverse Shift Ratio Reverse(high/low) : 8.105/6.327
Gear Shift Lever Floor Shift

Axle

Front Axle
Type Reverse Elliot type "|" beam
Capacity 6,000 kg
Rear Axle
Type Full floating type
Capacity 13,000 kg X 2
Axle Ratio 4.875

Performance

Max. Speed 113 km/h
Max. Gradeability 40%

Suspension & Brakes

Front Suspension Multi Leaf
Rear Suspension Multi Leaf
Service Full Air
Parking Brake Air Type Gradual Parking

Weight

Wheelbase Type Short
Empty Vehicle Weight
Total 8,405 kg
Front 4,750 kg
Rear 3,655 kg
Gross Vehicle Weight
Total 31,700 kg
Front 6,500 kg
Rear 70,000 kg

Dimension

Wheelbase Type Short
Overall Length (OVL) 7,010mm
Overall Width (OVW) 2,490mm
Overall Height (OVH) 3,220mm
Wheelbase (1~2Axis) 2,300mm + 1350
Front Overhang 1,540mm
Rear Overhang 820mm
Min.Ground Clearance 265mm

Tire & Fuel Tank

Front Tire 12R22.5-16PR (Tubeless)
Rear Tire 12R22.5-16PR (Tubeless)
Fuel Tank 400L, Steel
