Exterior

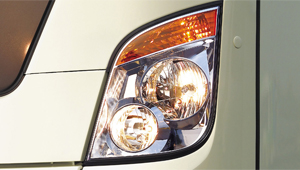

Clear head lamp (High Decker)

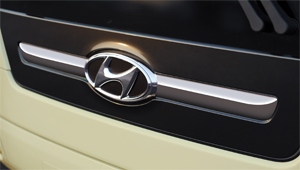

Chrome plated front garnish molding (High Decker)

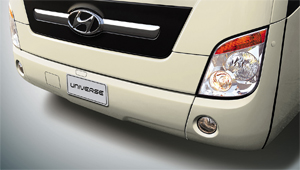

Streamlined front bumper and fog lamp (High Decker)
Streamlined front bumper and fog lamp (High Decker)
Black bezel head lamp (Standard Decker)

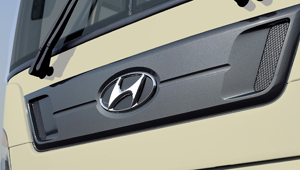

Front garnish with LH/RH mesh (Standard Decker)
Protrusion typed front bumper and fog lamp (Standard Decker)

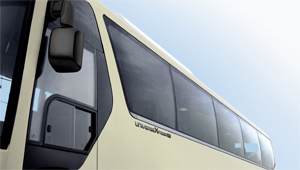

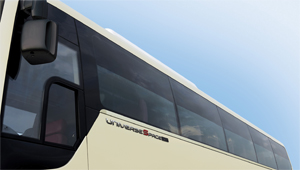

Vertical type B pillar (Standard Decker)
Rear bumper with reverse warning system (OPT)

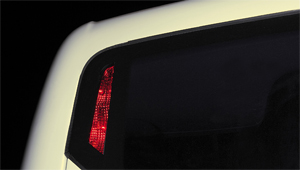

Rear marker lamp
Electro Deposition System
Swing-out type middle door

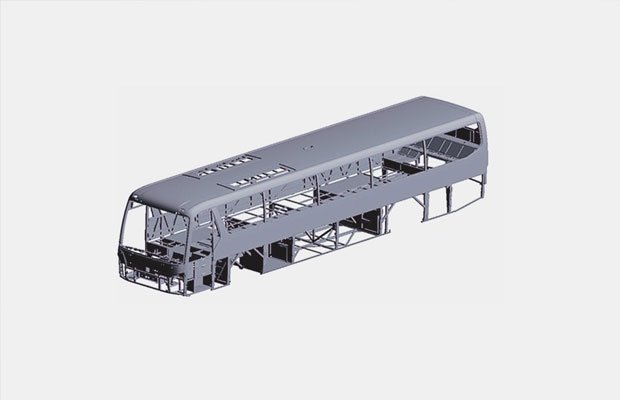

Monoque Body

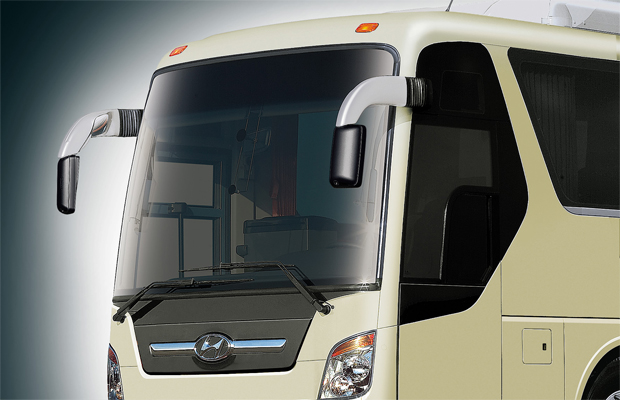

1 piece windshield glass / overlap type wiper

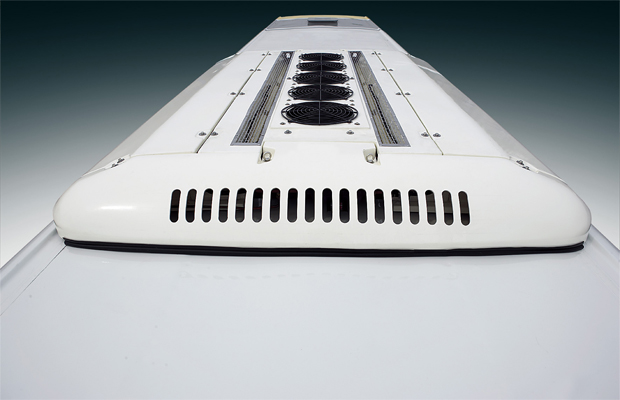

Integrated air conditioner

Interior

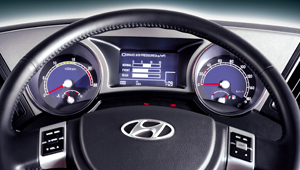

Sporty and stylish cluster

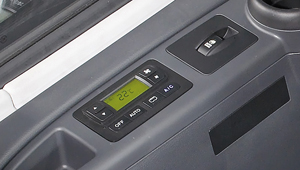

Power window and AC controls

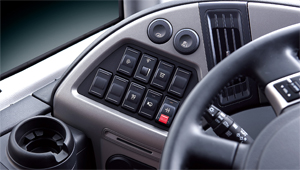

Chassis system controls

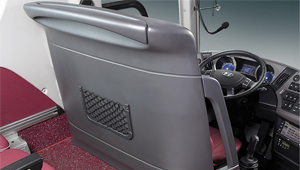

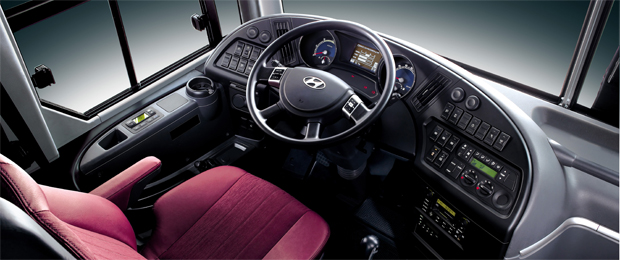

Deluxe type driver's partition

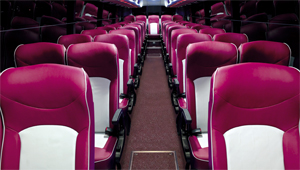

Noble 45 seater (High deck)

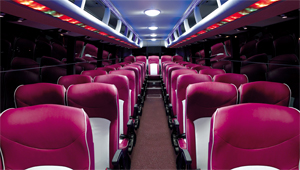

Fluorescent room lamp & Mood lamp & 2-row LED line light

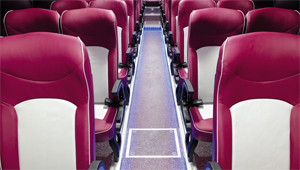

LED floor lamp
Lid type shelves
Driving Space (Standard)

Specifications

Basic Specification

Driving Handle Right Handle
Series Name Universe
GVW 18,500 kg
Wheel Base Type Standard
Door Front Door
Seats Capacity 45+1
Air Conditioner (A/C) Standard for Passenger and Driver

Engine Model

Emission EURO3
Fuel Type Diesel
Max. Power 380ps @ 1,9000rpm
Max.Torque 148kgm @ 1,200rpm
No. of Cylinder 6
Displacement 1204cc

Transmission

Model Name M12S5-R
Type Manual (Forward 5 / Rear 1)

Axle

Fron Axle
Capacity 7,000 kg
Rear Axle
Capacity 11,500 kg
Ratio 3.153

Performance

Max. Speed 131 km/h
Max. Gradeability 40%

Suspension & Brakes

Front Suspension Air
Rear Suspension Air
Service Full Air
Parking Brake Air Type Gradual Parking

Weight

Wheelbase Type Standard
Empty Vehicle Weight
Total 12,595 kg
Front 4,750 kg
Rear 7,845 kg
Gross Vehicle Weight
Total 18,500 kg
Front 7,000 kg
Rear 11,500 kg

Dimension

Wheelbase Type Standard
Overall Length (OVL) 12,030mm
Overall Width (OVW) 2,495mm
Overall Height (OVH) 3,490mm
Wheelbase (1~2Axis) 6,120mm
Front Overhang 2,670mm
Rear Overhang 2,240mm
Min.Ground Clearance 200mm

Tire & Fuel Tank

Front Tire 295/80 R 22.5
Rear Tire 295/80 R 22.5
Fuel Tank 420L, Steel
